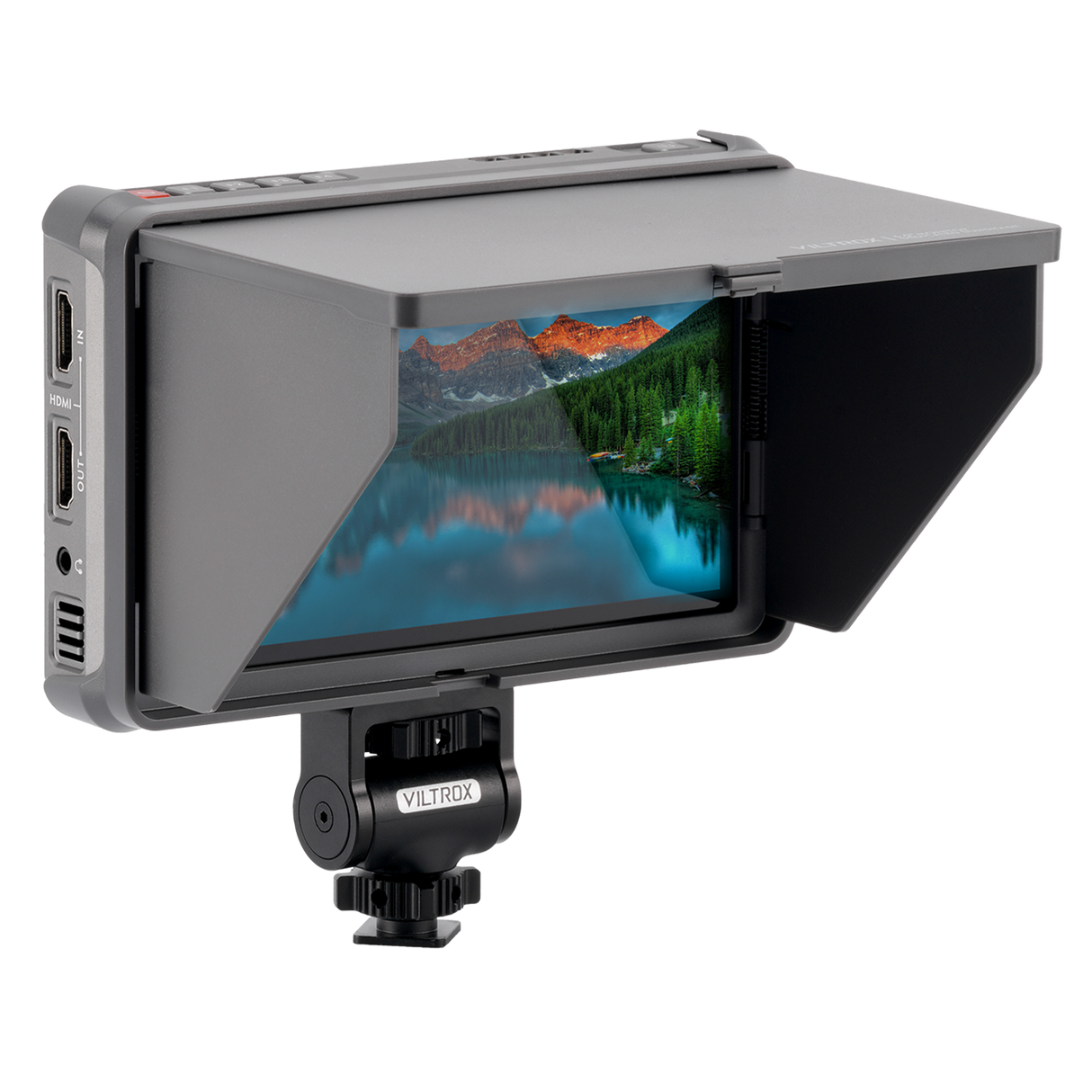

Viltrox DC-X2-6 "camera monitor
If you have felt the built -in screen of your camera too often than too small, this time of the small screens is with the Viltrox camera monitor DC-X2 Now over.

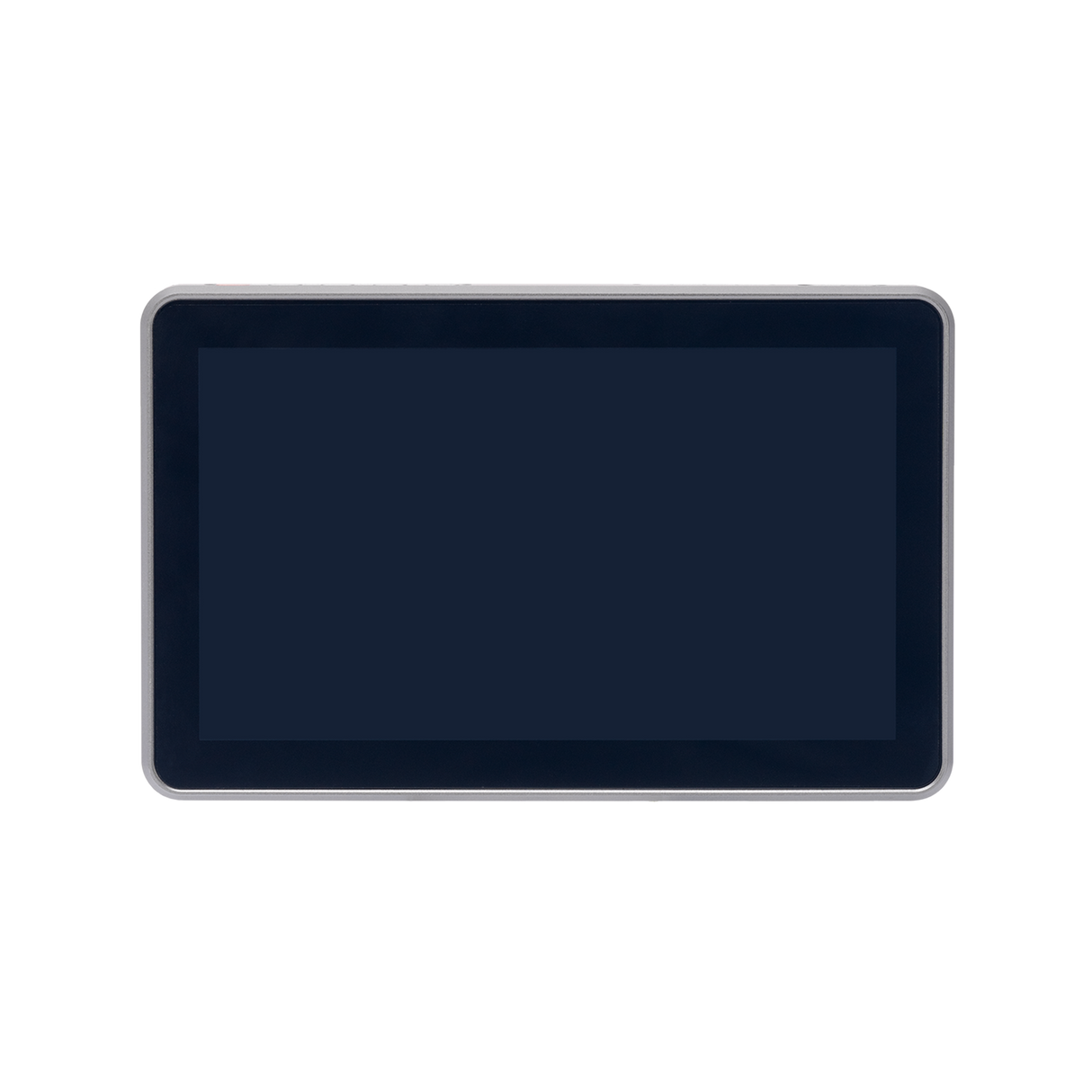

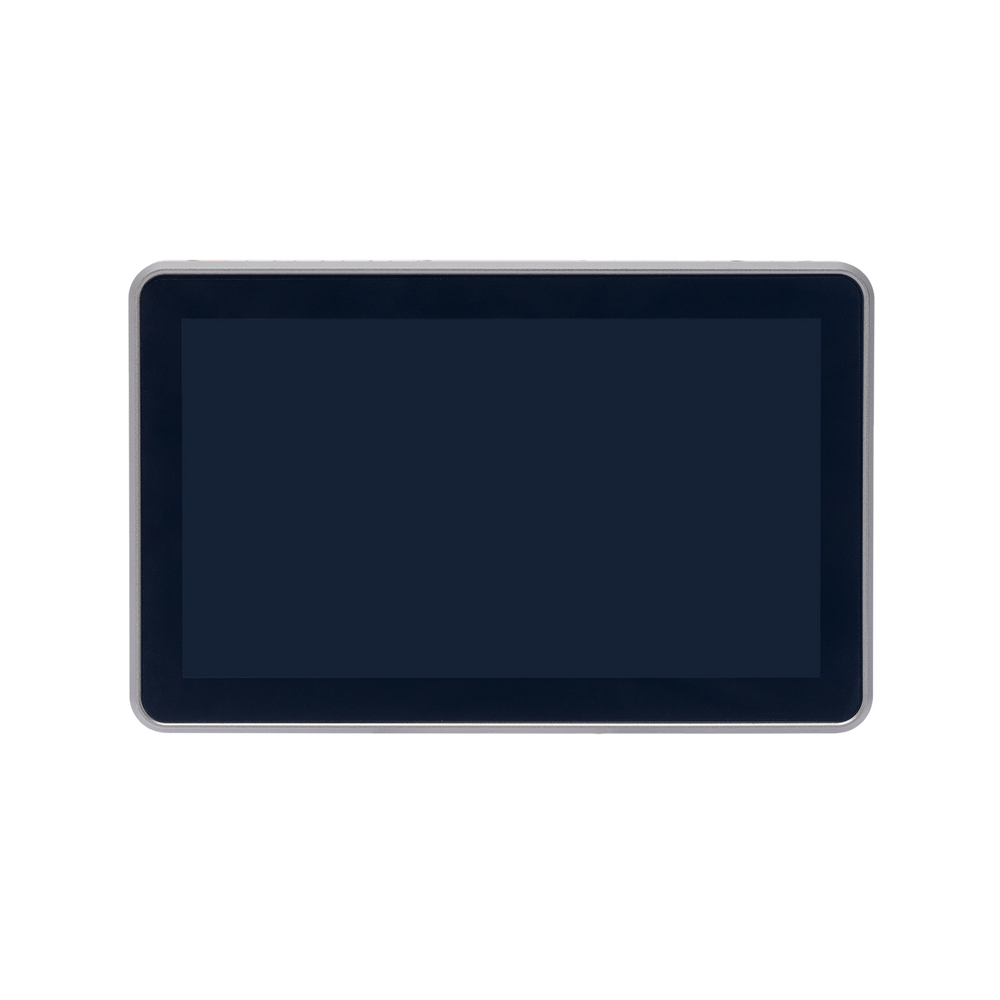

6-inch touchscreen display: Large display for optimal overview and comfortable operation
The monitor has one big display With a screen diagonal of 6 inches And the monitor is operated very easily and comfortably via touchscreen, so you can easily type through the menu.
High resolution: Full HD resolution and brightness of 2,000 nits
In addition, the monitor has one Full HD resolution and with the impressive Brightness of 2,000 nits Even with strong sunlight, you have no problems seeing all the content of the monitor and operating it.
Various connections: 4K HDMI in/Out, NP-F, USB-C and much more

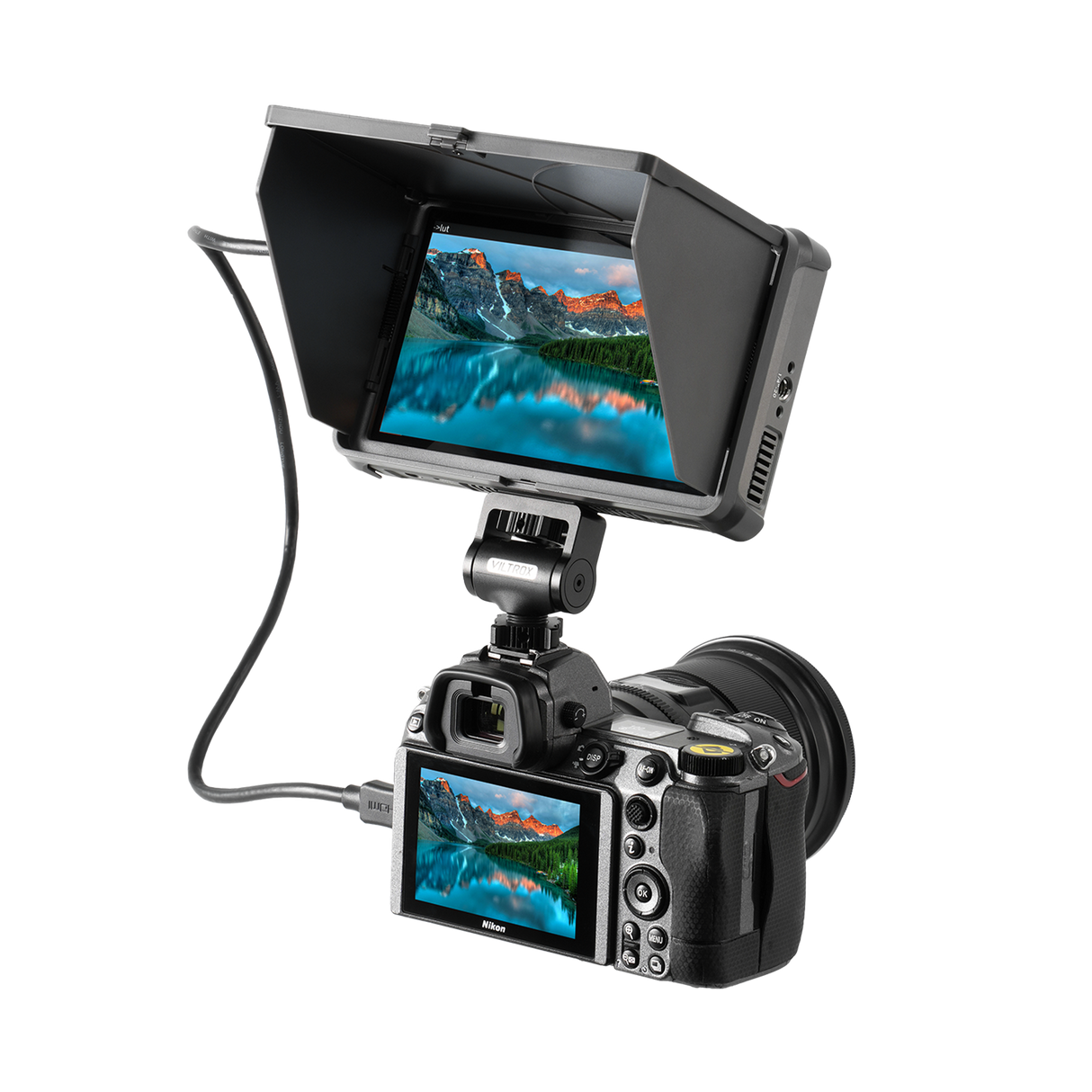

On the Integrated HDMI input and output If it is possible to reproduce content in 4K, for example, from your camera by the monitor on another device. On the USB connection For example, you have the option of importing the monitor with a USB stick, i.e. preset sets in terms of color, brightness, saturation and more. The NP-F, USB-C and DC connections Secure the power supply of the device. The integrated 3.5 millimeter-jack connection enables the playing of sound comfortably via headphones. And for quick and safe attachment in a horizontal or vertical position directly on your camera or on a tripod, the Integrated 1/4 inch connections on the side and on the underside of the monitor and the Supplied cold shoe adapter.
Diverse functions: False Color, Focus Peaking, Waveeform and much more

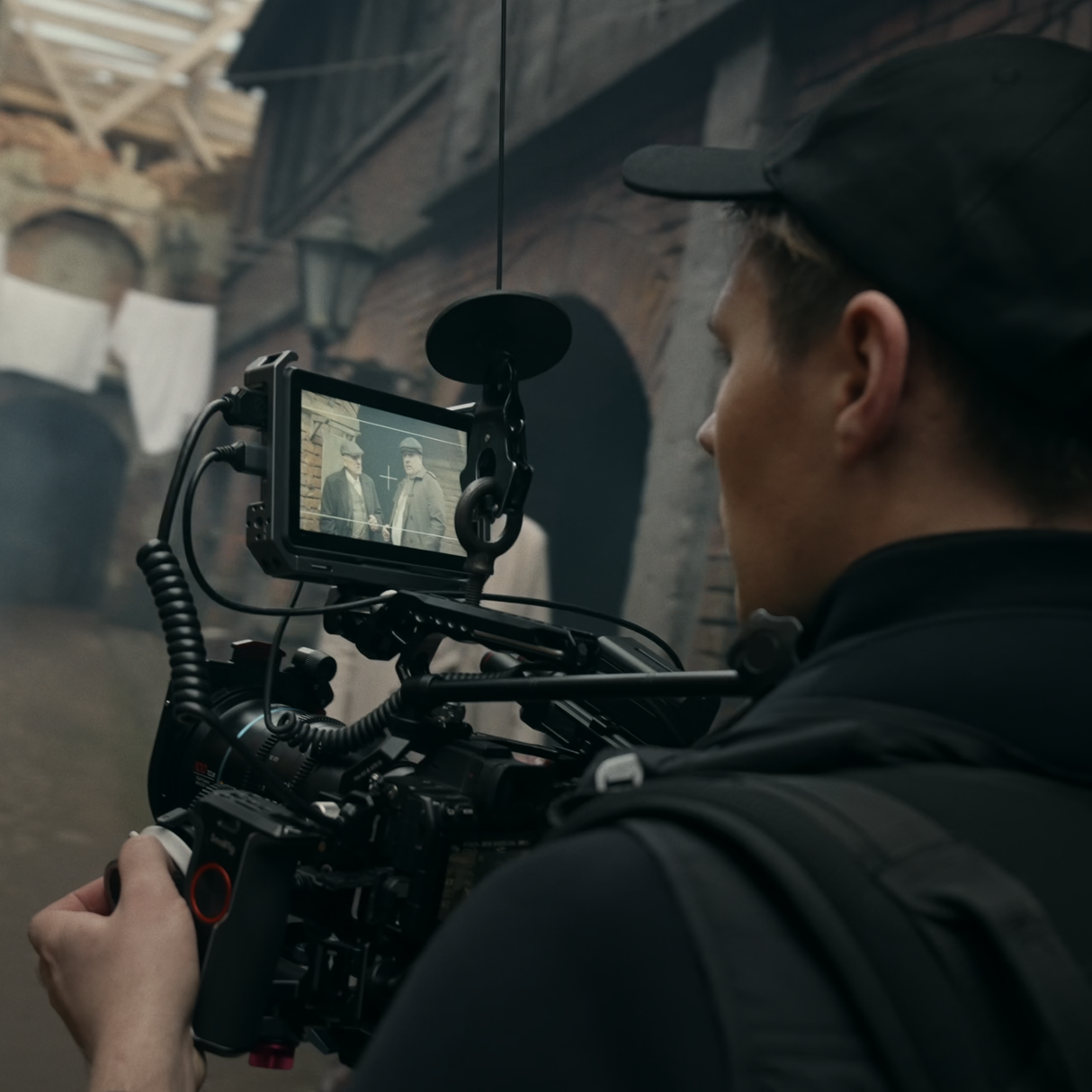

The Viltrox camera monitor DC-X2 has numerous useful functions that are very helpful for photo and video shoots in the studio or on location. With the "Zebra" function For example, you can see which areas are overexposed so that you get a better overview of contours and light and dark areas. The "False Color" function Allows you that overexposed areas can be displayed in dark red, for example, and can be corrected. The "Center Cross" function Can be set in order to be able to adjust length conditions better. With the function "Aspect Ratio" If you see which area will be in the picture later and with video editing software you can later transfer the photo to the format, whereas the function "Safe area" shows which area must be in the picture so that the recordings can be transferred later to other formats. Through the function "Focus Peaking" If sharpening and blurring are better visible in the picture, colors of the "focus peaking" can be set in four different colors (red, green, blue and gray) and intensities can be set differently. Also "Waveeform", so the control of the luminance level, and "Grid", i.e. the division into individual image areas, belong to other helpful functions with which the camera monitor DC-X2 is equipped. The rash and the absorption of audio can use the function "Audio meter" are displayed and the monitor has a sound reproduction.

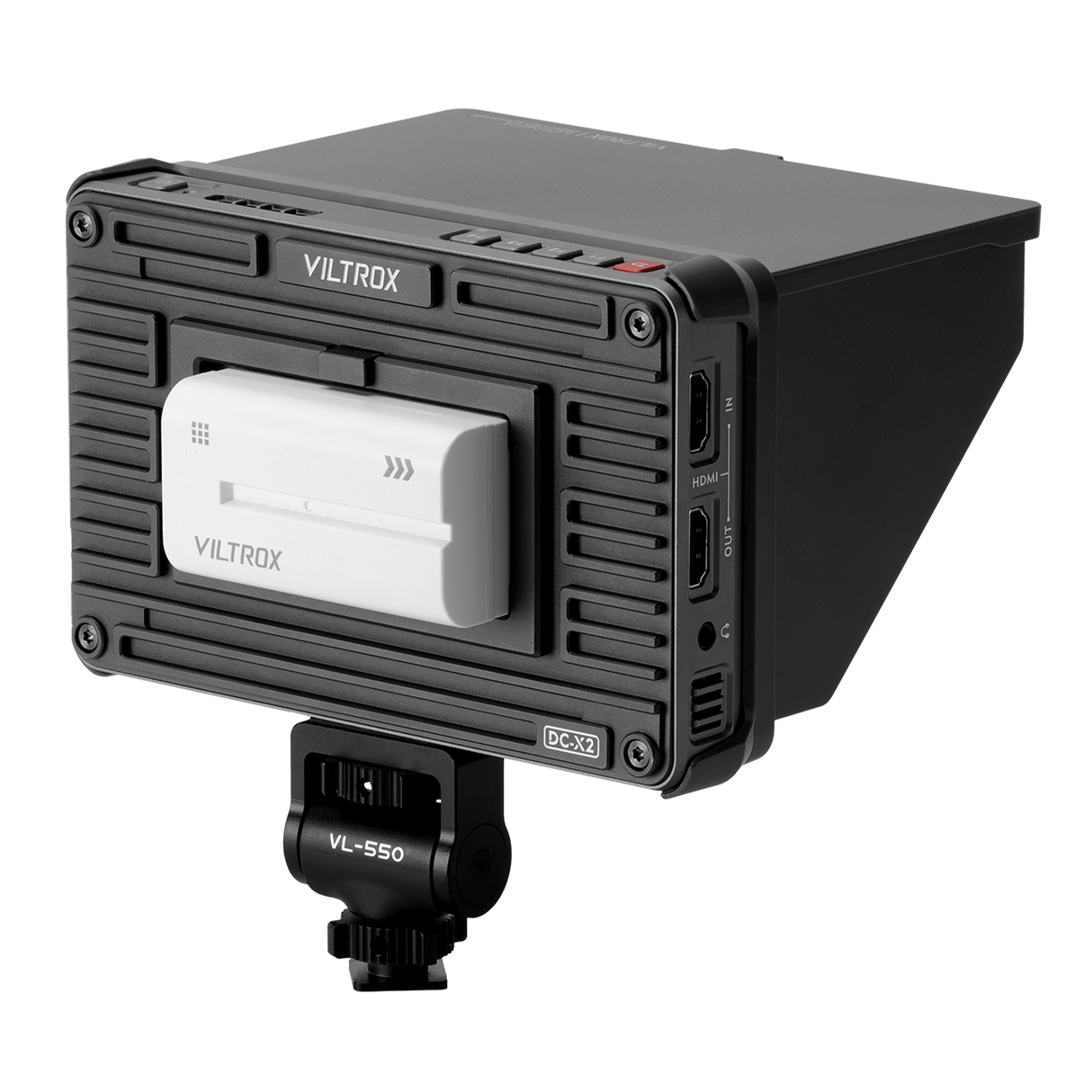

Flexible power supply: operation via NP-F battery, USB-C power bank or cable

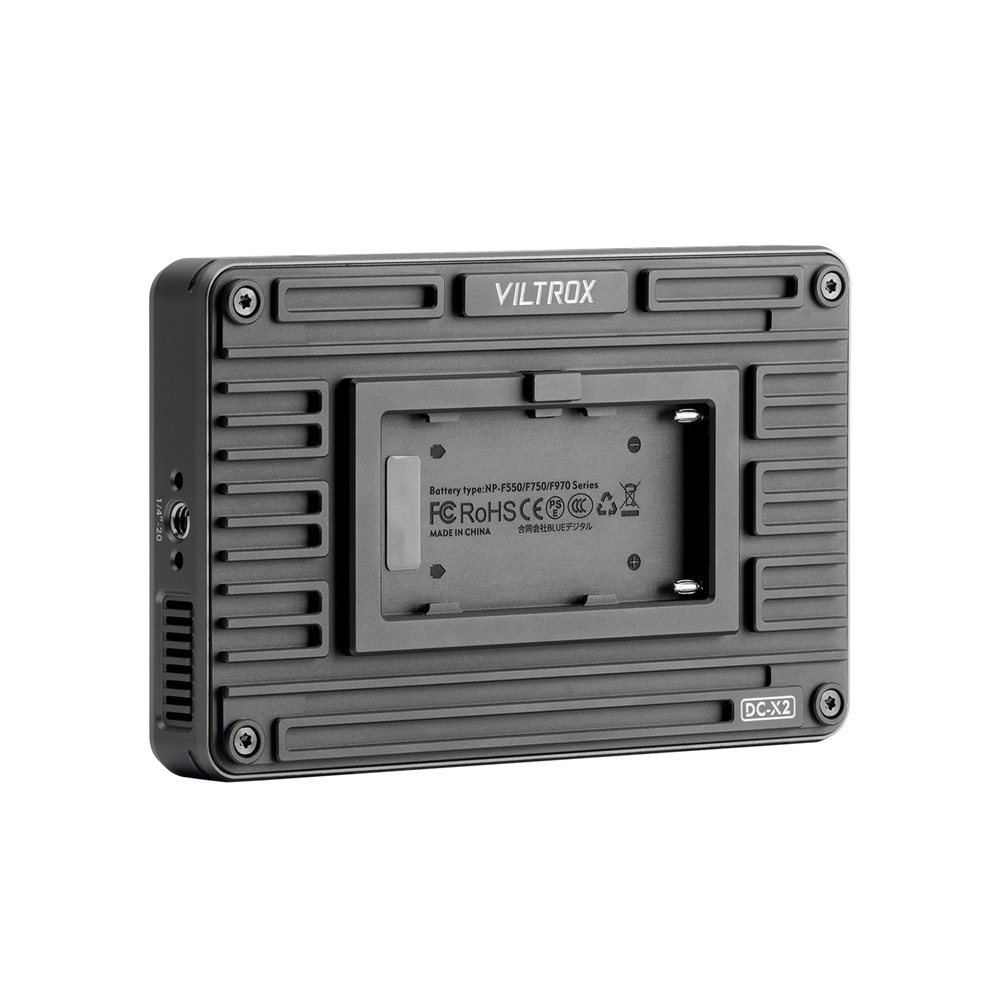

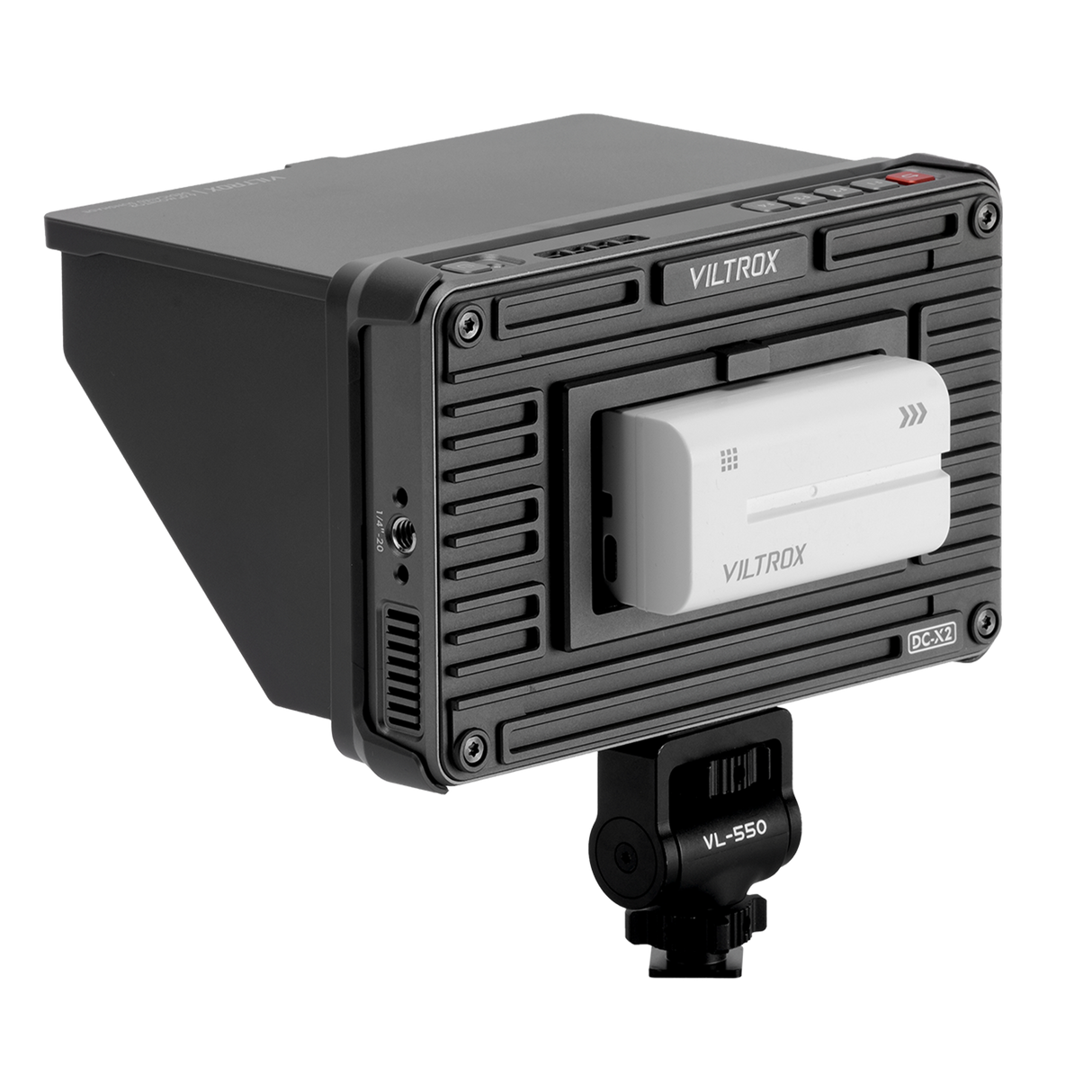

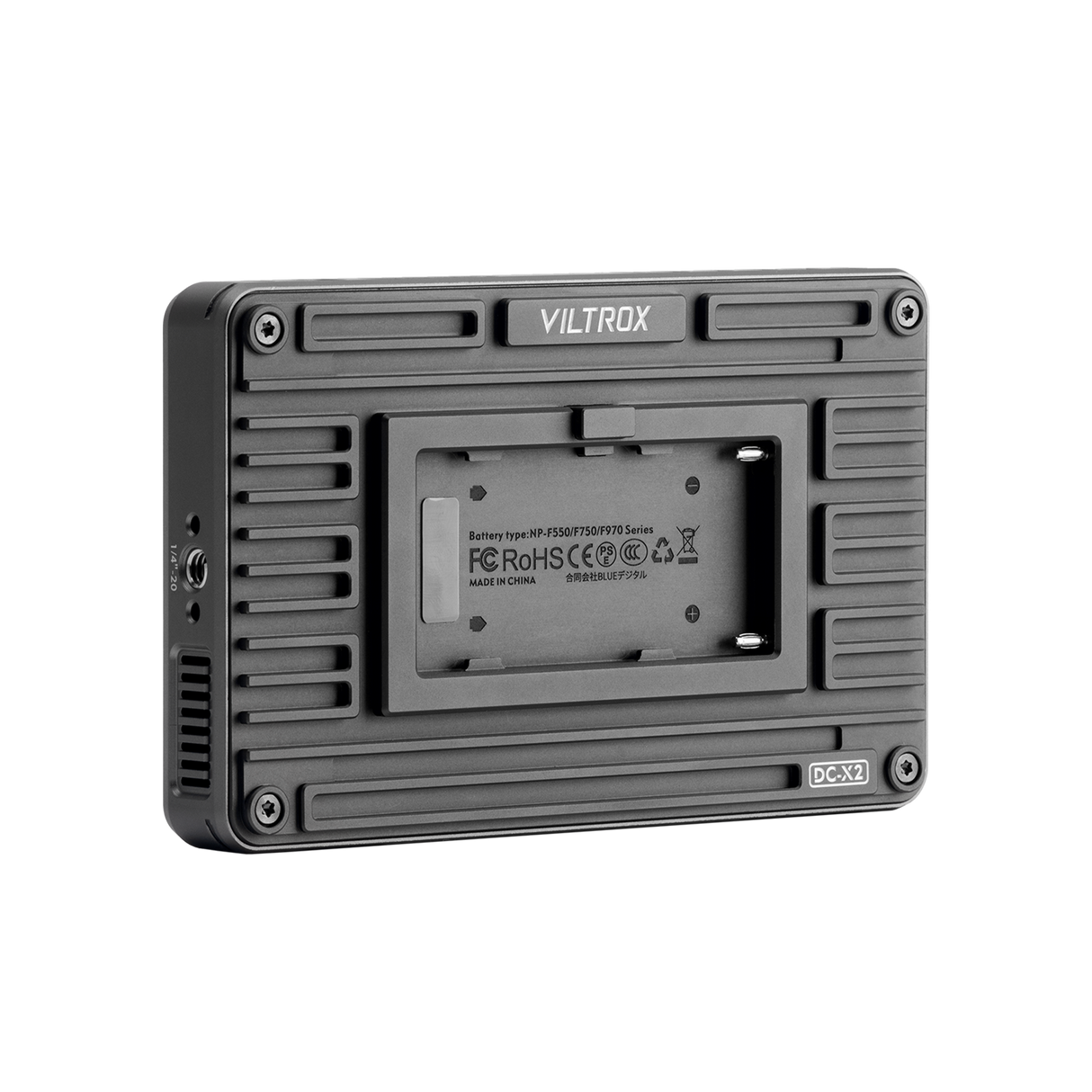

The Camera monitor DC-X2 offers flexible possibilities of power supply. He comes with a supplied NP-F battery, but is also compatible with our further Available NP-F batteries. Alternatively, it can also be connected to a cable with a cable via the integrated USB-C connection, for example, to a power bank or via the integrated DC connection.
Technical data
| Screen size: |
6" |
| Resolution: |
1,920 x 1,080 |
| Brightness: |
2,000 nits |
| Contrast: |
1.000:1 |
| Consideration angle: |
160 ° |
| Back lighting: |
LED |
| Power supply: |
DC input: 12.0-18.0 V / 2.0 A, USB-C input: 9.0 V / 3.0 A
Battery: NP-F
|
| Connections: |
4K HDMI-in connection, 4K HDMI-out connection, USB connection, NP-F connection, USB-C connection, DC connection, 3.5 mm jack connection, 2 x 1/4 " -Connection
|
| Material: |
plastic |
| Dimensions: |
15.5 x 9.8 x 2.7 cm |
| Weight: |
325 g |

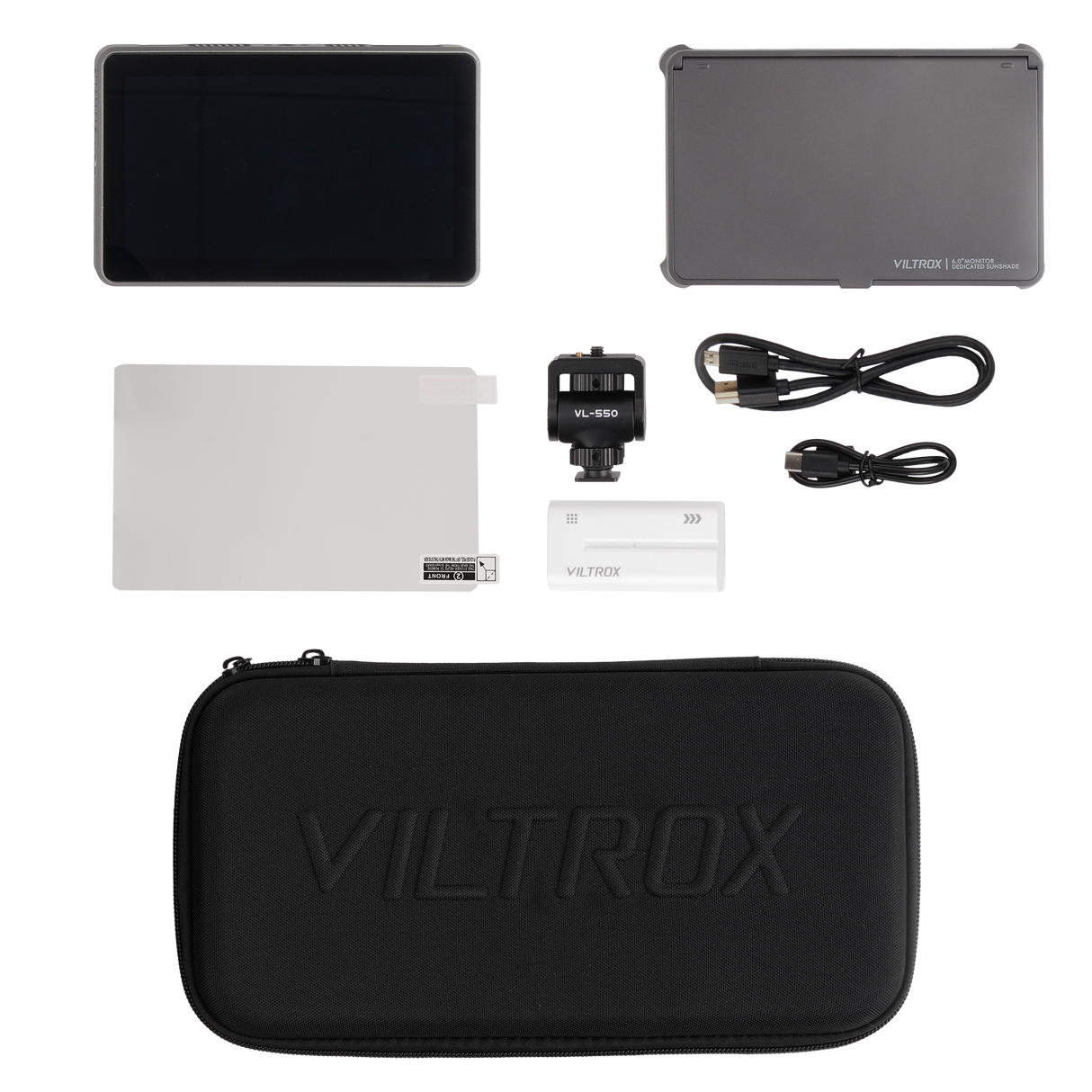

scope of delivery
- 1x monitor

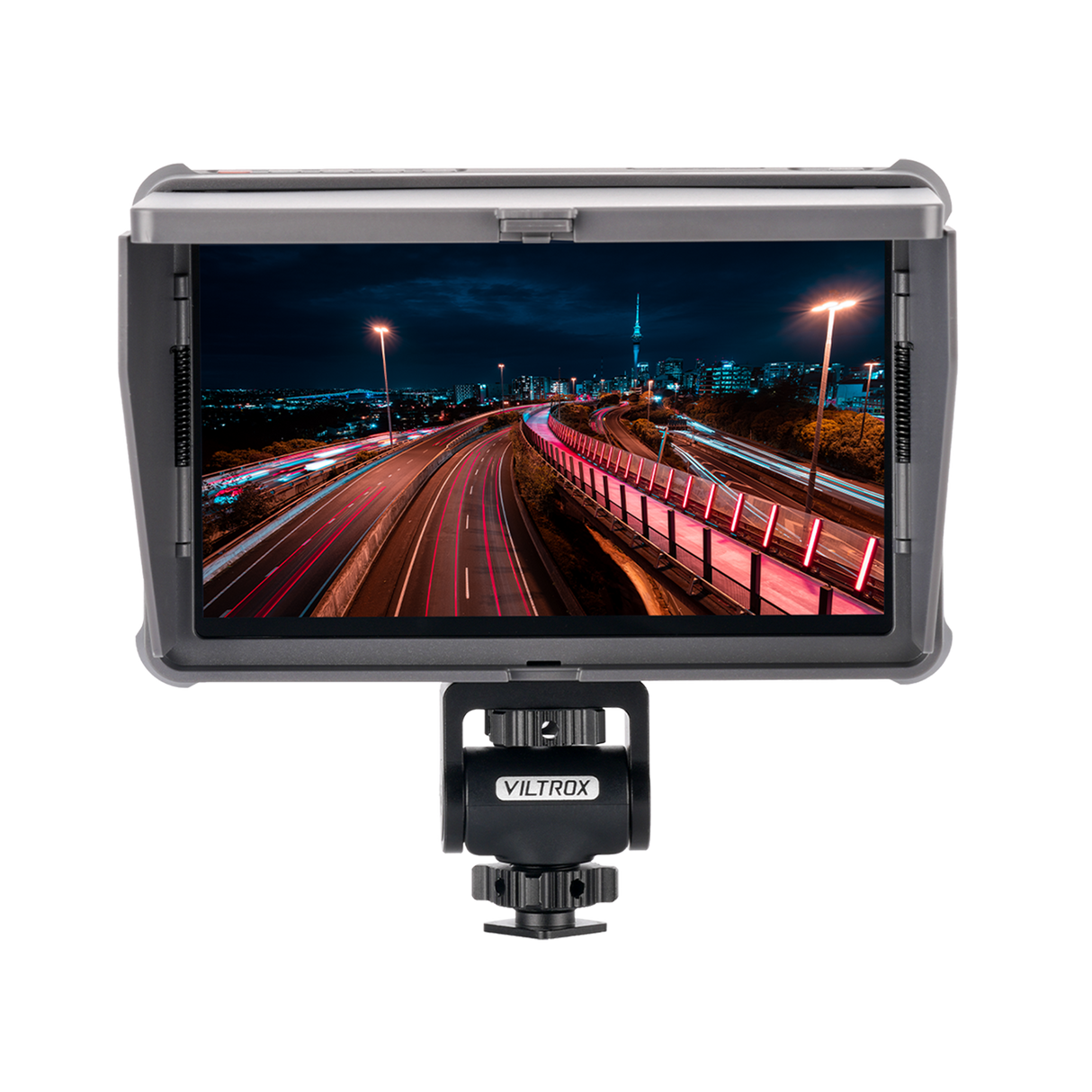

- 1x sun visor

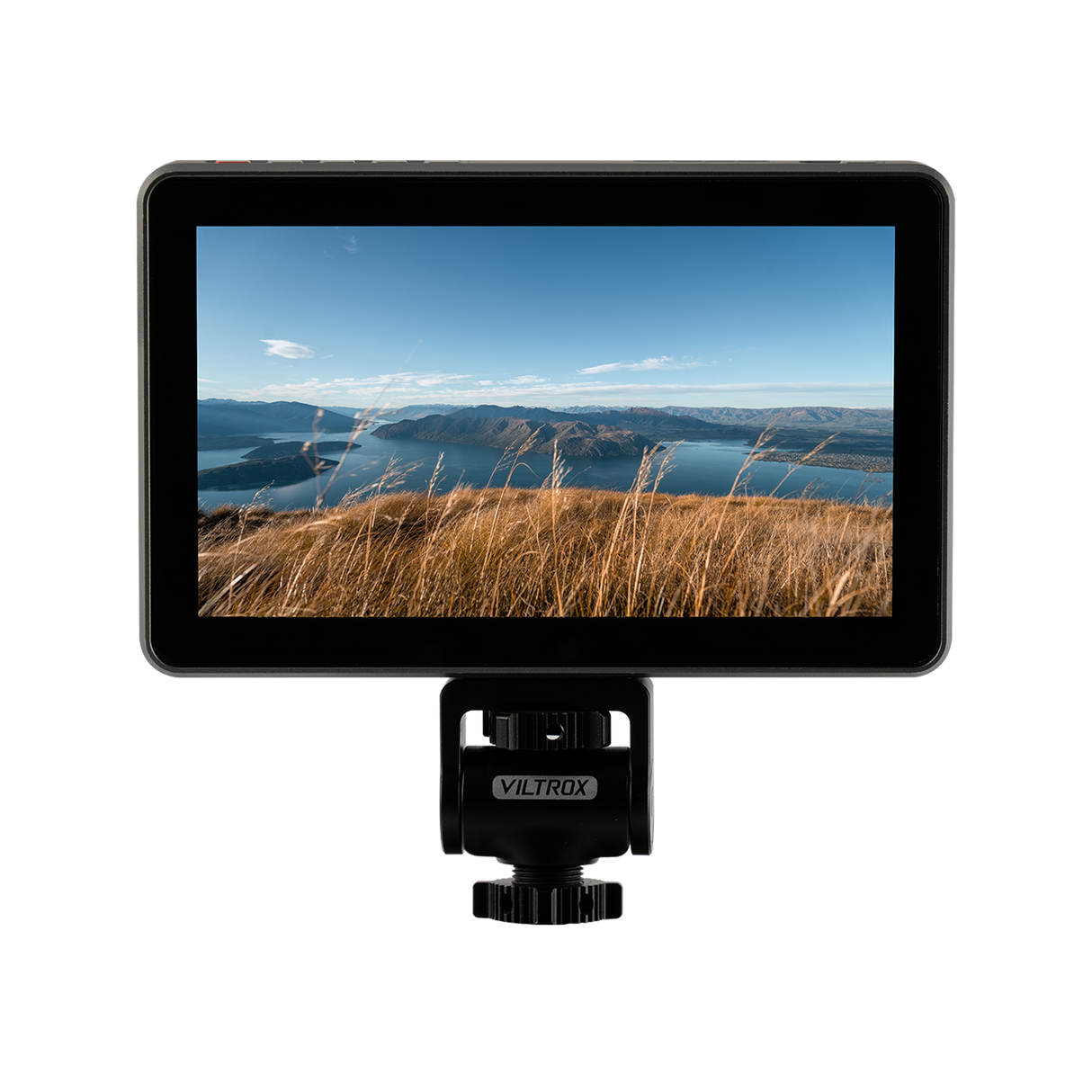

- 1x cold shoe adapter
- 1x battery type NP-F550
- 1x micro HDMI cable
- 1x USB-C cable
- 1x display protective film
- 1x bag
